One day while browsing CTFs on ctflearn I stumbled upon a rather unique challenge. Instead of debugging or reverse engineering the code, it was an .mp4 file that somehow got mixed up. Since I like both video compression and reverse engineering I immediately picked up on this challenge.
My MP4 file has identity issues, he thinks he is something else! I'm sure he is just mixed up, but really, who knows?
We might be both right, We might be both wrong.
This was the provided description, and the .mp4 file was also attached.
What we’re dealing with
First thing I did was to check the downloaded file:
$ ls -la flag.mp4
-rw-r--r-- 1 user user 408083 Aug 15 22:27 flag.mp4
$ file flag.mp4
flag.mp4: Apple QuickTime movie (fast start)
$ strings flag.mp4
...
dk40L
l@wP
DELETETHIS MESSAGE, IT IS NOT A PART OF THE PROBLEM, IF YOU LIKE THE PROBLEM PLEASE LEAVE A LIKE ON THE CTFLEARN WEBSITE!
Running strings we can see, there’s a message concatenated at the end. At first I thought that would be it but boy I was wrong…
After trying to understand what the message is actually about, I decided to remove it from the end of .mp4 file just like it told me to. Not sure what was its purpose but maybe just to reassure people that the challenge is solvable.
Next I tried to decode the file with ffmpeg and mpv:
$ ffmpeg -hide_banner -i flag.mp4
[aac @ 0x5c908b021d00] channel element 0.4 is not allocated
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from 'flag.mp4':
Metadata:
creation_time : 2019-12-25T17:18:32.000000Z
date : 2019
title : Recording (2)
album_artist : Voice Recorder
Duration: 00:00:32.44, start: 0.000000, bitrate: 100 kb/s
Stream #0:0[0x2](und): Audio: aac (LC) (mp4a / 0x6134706D), 44100 Hz, mono, fltp, 99 kb/s (default)
Metadata:
creation_time : 2019-12-25T17:18:32.000000Z
handler_name : SoundHandler
vendor_id : [0][0][0][0]
At least one output file must be specified
$ mpv flag.mp4
(+) Audio --aid=1 (*) (aac 1ch 44100Hz)
File tags:
Album_Artist: Voice Recorder
Date: 2019
Title: Recording (2)
[ffmpeg/audio] aac: channel element 0.4 is not allocated
Error decoding audio.
[ffmpeg/audio] aac: channel element 0.0 is not allocated
Error decoding audio.
[ffmpeg/audio] aac: Reserved bit set.
[ffmpeg/audio] aac: channel element 0.0 is not allocated
Error decoding audio.
[ffmpeg/audio] aac: channel element 1.0 is not allocated
Error decoding audio.
[ffmpeg/audio] aac: Number of bands (8) exceeds limit (2).
...
Now we know something is indeed wrong with our input file. The errors are from the aac decoder itself so it looks like the bitstream is corrupted. Now we have to go deeper.
MP4 container structure
Before we continue, we must know the structure of .mp4 file down to raw bytes. To play a multimedia file, the decoder must know the parameters like resolution, framerate, length amd other important metadata. Bitstreams of popular multimedia codecs like H.264, AV1 often do not contain these parameters. Also if we want to play more than one codec at once, multimedia containers like .mp4 are the only option. They provide accurate timestamps so the player can synchronize for example audio sampled 44100 times a second, a video at 23.976 fps and subtitles.
In MP4 container the data is contained in atoms. Think of them as boxes for any kind of data ranging from headers to large video bitstream chunks. In MP4 container, everything is an atom even the magic number, the header and the encoded bitstream. For more context you can see a long list of atoms here.
Some atoms are more important than others. Every .mp4 file has to contain these:
ftyp- A header indicating which version of the standard does the file usemoov- Atom containing data required for video playback like packets, timestamps and streams metadatamdat- An atom containing the actual data of encoded bitstreams (usually the largest one)
Here’s how a sample .mp4 file should look like:
00000000: 0000 0014 6674 7970 6973 6f6d 0000 0200 ....ftypisom....
00000010: 6d70 3431 0000 0008 6672 6565 03d5 55e5 mp41....free..U.
00000020: 6d64 6174 0000 00d1 6588 8200 1f5f fff8 mdat....e...._..
00000030: 228a 0002 2dbe 38c7 1939 3939 3939 3939 "...-.8..9999999
00000040: 3939 3939 3939 3939 3939 393a ebae baeb 99999999999:....
00000050: aeba ebae baeb aeba ebae baeb aeba ebae ................
...
The first thing we see is the ftypisom word which represents an ftyp atom with isom brand. Also note the 4 bytes before every atom determine its length (big endian). In our case the length of ftyp atom is 0x14 == 20 bytes.
atom code version
v v
0x00000014 ftyp isom 0x00000200 mp41
^ ^ ^
atom size brand compatible brands
The next atom is free. It is only used for padding purposes and its size can be 0.
0x00000000 free
^ ^
atom size atom code
After the padding there’s an mdat header with the length of 0x03d555e5 which is around 64 megabytes. This is the size of video data.
0x03d555e5 mdat 0x000000d1...
^ ^ ^
atom size | video data...
atom code
Now, where is moov atom? In MP4 containers, for some reason the default placement of media playback information is at the end of file so right after the bitstream data. I found moov atom just after media data. Here’s a relevant part of sample file:
03d55600: 5c00 0540 826d 6f6f 7600 0000 6c6d 7668 \..@.moov...lmvh
03d55610: 6400 0000 007c 25b0 807c 25b0 8000 0003 d....|%..|%.....
03d55620: e800 0919 eb00 0100 0001 0000 0000 0000 ................
03d55630: 0000 0000 0000 0100 0000 0000 0000 0000 ................
03d55640: 0000 0000 0000 0100 0000 0000 0000 0000 ................
03d55650: 0000 0000 0040 0000 0000 0000 0000 0000 .....@..........
03d55660: 0000 0000 0000 0000 0000 0000 0000 0000 ................
03d55670: 0000 0000 0300 01d3 ff74 7261 6b00 0000 .........trak...
03d55680: 5c74 6b68 6400 0000 0f7c 25b0 807c 25b0 \tkhd....|%..|%.
You may notice there are also other atoms like mvhd, trak and tkhd. These are all in the data range of moov which is 0x00054082 == 344194 bytes in size. That’s perfectly normal. There can be other atoms under their parents. This forms a tree-like structure and helps keep things more organized.

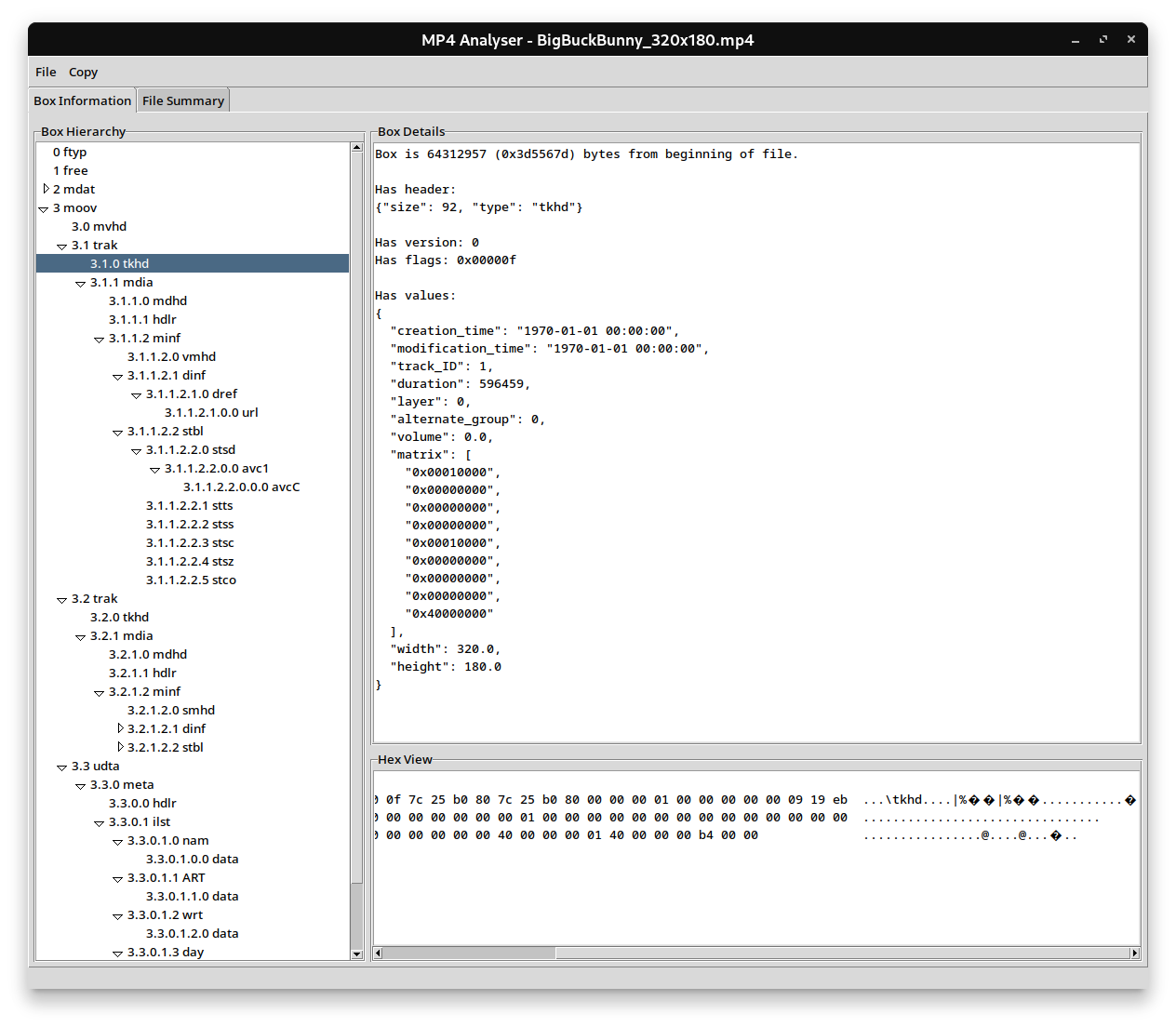

To view all atoms in this structure we can use mp4analyser.
I won’t get into much detail but you can play around, the program is awesome and it helped me a lot when solving this challenge. Now we can go back to our troubled .mp4 file.
Fixing the MP4
The flag.mp4 file looks like this:
00000000: 5245 444b 6d6f 6f76 0000 006c 6d76 6864 REDKmoov...lmvhd
00000010: 0000 0000 da29 4a68 da29 4a68 0000 ac44 .....)Jh.)Jh...D
00000020: 0015 d3fc 0001 0000 0100 0000 0000 0000 ................
00000030: 0000 0000 0001 0000 0000 0000 0000 0000 ................
00000040: 0000 0000 0001 0000 0000 0000 0000 0000 ................
00000050: 0000 0000 4000 0000 0000 0000 0000 0000 ....@...........
00000060: 0000 0000 0000 0000 0000 0000 0000 0000 ................
00000070: 0000 0003 0000 17c1 7472 616b 0000 005c ........trak...\
00000080: 746b 6864 0000 0001 da29 4a68 da29 4a68 tkhd.....)Jh.)Jh
00000090: 0000 0002 0000 0000 0015 d3fc 0000 0000 ................
...
It’s quite different from what we learned with the sample file. We can see the moov atom along with its subatoms. I found it a bit strange the file starts with REDK. It is meant to be the size of moov atom but clearly our file isn’t larger than 1 GB (it’s 400 KB).
The placement of moov file at the beginning is called a fast start (like the file command told us). We won’t get into much detail but this essentially if the moov is at the end, the entire file needs to be downloaded before initializing the player. If fast start is enabled, the moov is placed at the beginning of the file and the player can retrieve playback information instantly. Therefore even partially downloaded files can be played back with fast start.
Also the file doesn’t start with ftyp atom which is very unusual, it can be found much later in the file.
...
00001870: 7374 0000 001c a964 6179 0000 0014 6461 st.....day....da
00001880: 7461 0000 0001 0000 0000 3230 3139 0000 ta........2019..
00001890: 0025 a96e 616d 0000 001d 6461 7461 0000 .%.nam....data..
000018a0: 0001 0000 0000 5265 636f 7264 696e 6720 ......Recording
000018b0: 2832 2900 0000 2661 4152 5400 0000 1e64 (2)...&aART....d
000018c0: 6174 6100 0000 0100 0000 0056 6f69 6365 ata........Voice
000018d0: 2052 6563 6f72 6465 7200 0000 0858 7472 Recorder....Xtr
000018e0: 6100 0000 1866 7479 706d 7034 3200 0000 a....ftypmp42...
000018f0: 006d 7034 3169 736f 6d00 0000 2875 7569 .mp41isom...(uui
00001900: 645c a708 fb32 8e42 05a8 6165 0eca 0a95 d\...2.B..ae....
00001910: 9600 0000 0c31 302e 302e 3138 3336 332e .....10.0.18363.
00001920: 3052 4544 4b6d 6461 7400 0000 0000 0000 0REDKmdat.......
00001930: 1007 1e18 ac24 260a 0484 8220 b110 4c14 .....$&.... ..L.
...
There’re also some additional atoms like uuid and Xtra however I don’t think they are important in this challenge. The metadata strings like Voice Recoder or Recording suggest the file has an audio track so quite possibly the aac codec is correct. Another interesting thing is the REDK here as the size of mdat atom. One could suspect those REDK values must be changed.
At first I thought
REDKis some weird abbreviation of “redacted” but turns out RedK is the author of this CTF challenge.
Calculating atom sizes
To calculate mdat atom size we can substract its offset from the entire file size (with the message at the end removed) as mdat is the last atom in this case. If there was moov atom after mdat (so without fast start), we would take the offset of moov atom instead of the file size.
For this file it’s: 407962 - 0x1921 = 401529 = 0x62079
-00001920: 3052 4544 4b6d 6461 7400 0000 0000 0000 0REDKmdat.......
+00001920: 3000 0620 796d 6461 7400 0000 0000 0000 0.. ymdat.......
For the moov atom size, we should use the distance to the next atom at its level. That can be tricky since it’s necessary to know atoms like trak, tkhd, mdia, st** should be contained in moov atom. In our case the first atom that shouldn’t be under moov is ftyp.
I also rearranged atoms a lot during the challenge but in the end decided not to. We can keep things much simpler that way and it looks like while
ftypshould be the first atom, media players will work just fine when it’s not.
The ftyp atom has an offset of 0x18e1 so that’s what we should use for the moov size.
-00000000: 5245 444b 6d6f 6f76 0000 006c 6d76 6864 REDKmoov...lmvhd
+00000000: 0000 18e1 6d6f 6f76 0000 006c 6d76 6864 ....moov...lmvhd
Chunk offset
At first I thought the challenge will be over at this point. REDK offsets were replaced and everything should be good however ffmpeg still compilained about the aac stream throwing number of different bitstream errors.
This part took me the most time as I couldn’t figure out what was wrong. I tried moving the atoms around, changing track IDs but the result was the same. At this point I even started to wonder if flag was in the audio recording, maybe it was somewhere else and I missed it. After all it’s very unusual to present the CTF flag in audio form.

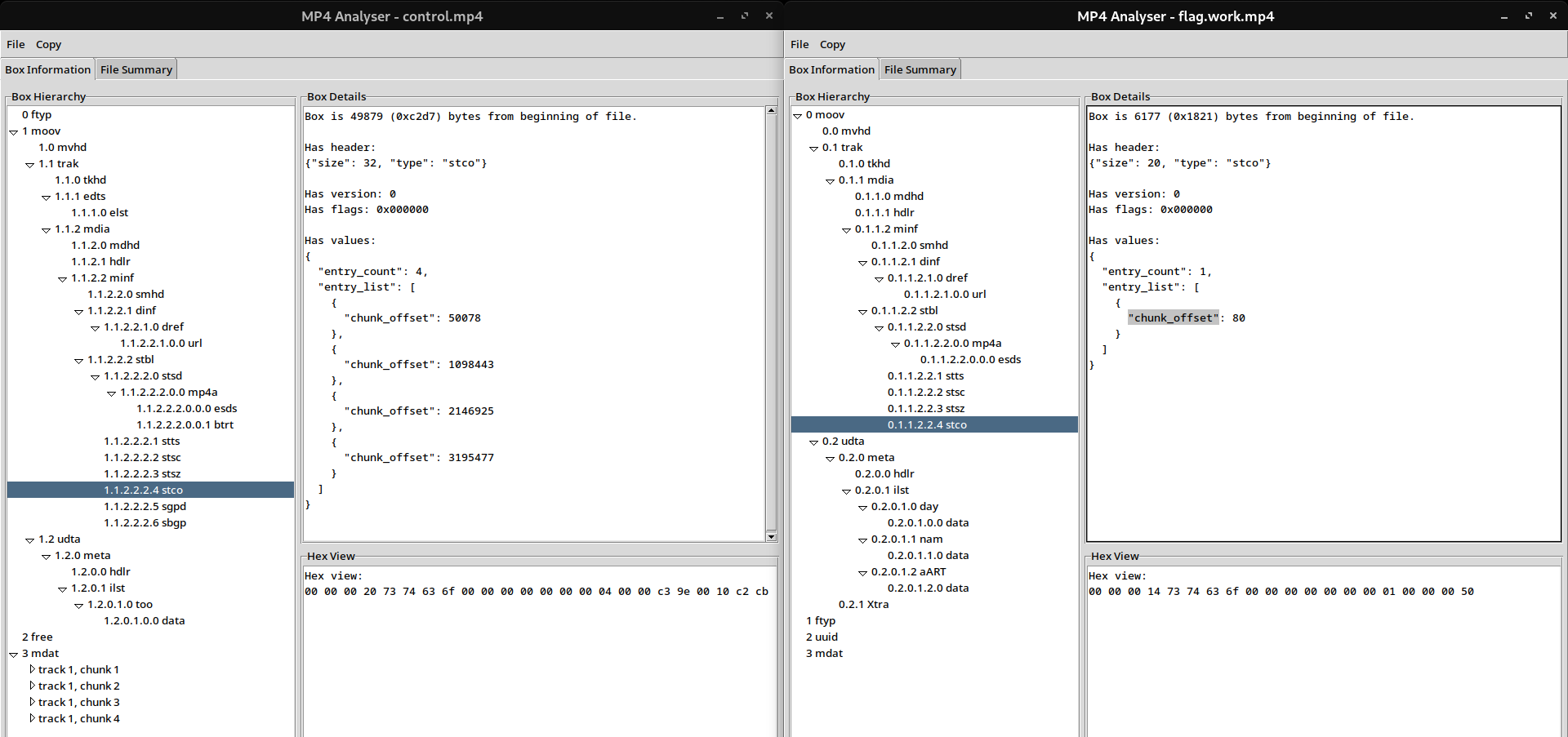

Later I created my own file and compared it with the corrupted one. After repairing the offsets, I opened the flag.mp4 file in mp4analyser. The one thing I found off was that mp4analyser told me there were no samples found in mdat while in my control file, it had no problems with the samples.
I took a look at the stco atom which contains information about chunks in the MP4 container and I noticed the chunk offset was set to 80.
In my control file the chunk offset pointed to the first bytes of mdat atom data and the offset was absolute. flag.mp4 at the offset 80 had just a bunch of zeros in moov atom:
00000050: 0000 0000 4000 0000 0000 0000 0000 0000 ....@...........
In flag.mp4 the mdat data starts at the offset 0x1929 however later with trial and error I found out the aac audio stream actually begins at 0x1931.
We should change the chunk offset from 80 == 0x50 to 0x1931:
00001810: 5500 0000 f600 0001 4c00 0001 4600 0000 U.......L...F...
00001820: e100 0000 1473 7463 6f00 0000 0000 0000 .....stco.......
-00001830: 0100 0000 5000 0000 ac75 6474 6100 0000 ....P....udta...
+00001830: 0100 0019 3100 0000 ac75 6474 6100 0000 ....P....udta...
00001840: 9c6d 6574 6100 0000 0000 0000 2168 646c .meta.......!hdl
After opening the flag.mp4 file with mpv, the recorded audio started to play :)
Conclusion
I felt very rewarded I was one of only 20 people who solved this CTF challenge since 2019. I learned a lot about the mp4 container and hopefully you did too. It really isn’t all that scary, is it? :)
I saw others reordering atoms instead of changing chunk offset so I probably did something wrong before. I might’ve written a Python script to automate the repair process but I felt doing this by hand is certainly more educative. I used GHex to edit the binary. mp4analyser was tremendously useful during this challenge so I would recommend trying it out yourself.
